High Efficiency Anti Reflection Coating 8µm-12µm

High Efficiency Anti Reflection Coating 8µm-12µm

UCS_GASIR1_01

Productnumber: 2Gas1000001

This coating is the standard anti-reflection coating for use in the 8-12µm waveband. Combining high transmission, low reflection and moderate environmental resistance, this coating is best suited for internal surfaces (I.S.) applications.
This coating contains no radioactive material.

Actions

Spectral - additional

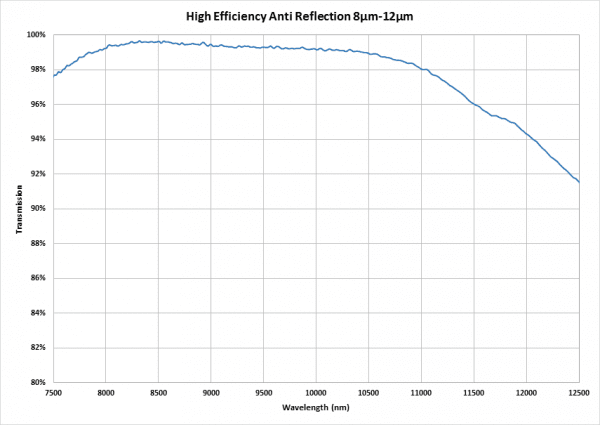

Transmission (Average)
>97% 8µm-12µm
>95% 8µm-14µm
For a 1mm thick witness piece, coated both faces with UCS_GASIR_01.
Reflection (Average)
<1% 8µm-12µm
<1.5% 8µm-14µm
per surface.
Angle of Incidence
0°

Environmental Properties

Adhesion

MIL-C-48497A, 08/09/1980, para 4.5.3.1

Adhesion Remark

Tape Test

Humidity

MIL-C-48497A, 08/09/1980, para 4.5.3.2

Humidity Remark

24Hrs, 49°C, 95-100% relative humidity

Abrasion

MIL-C-48497A, 08/09/1980, para 4.5.3.3

Abrasion Remark

Moderate, 50 strokes with a cheesecloth

Sizes

Up to 300mm in diameter
