Business unit / dept.: Electro-Optic Materials

High Durability Anti Reflection 8µm-12µm

High Durability Anti Reflection 8µm-12µm

UCS_GASIR1_02

Productnumber: 2Gas1000002

This coating offers high transmission in the pass band 8-12µm. It is a durable coating that can withstand severe abrasion. This coating can be used in external environmental conditions where regular cleaning is required.

This coating contains no radioactive material.



Actions

Spectral - additional

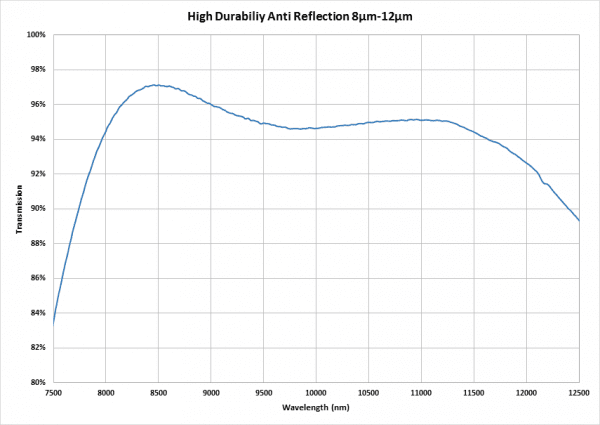

Transmission (Average)
>95% 8µm-12µm
For a 2mm thick witness piece, coated one face with high durability UCS_GASIR_02 and second face with high efficiency UCS_GASIR_01.
Reflection (Average)
<3% 8µm-12µm
Per Surface, for a 2mm thick witness piece, coated one face with UCS_GASIR_02.
Angle of Incidence
0°

Environmental Properties

Adhesion

MIL-C-48497A, 08/09/1980, para 4.5.3.1

Adhesion Remark

Tape Test

Humidity

MIL-C-48497A, 08/09/1980, para 4.5.3.2

Humidity Remark

72Hrs, 49°C, 95-100% relative humidity

Abrasion

MIL-C-48497A, 08/09/1980, para 4.5.5.1

Abrasion Remark

Severe, 20 strokes Eraser

Sizes

Up to 275mm diameter
