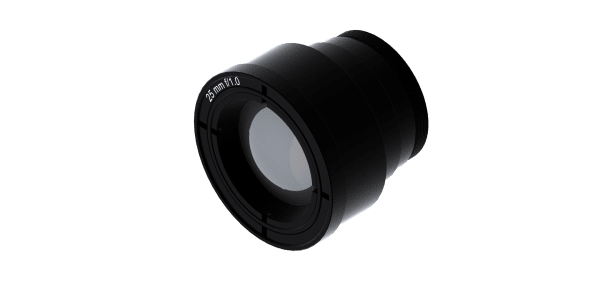

25mm f/1.0 SXGA

Umicore’s GASIR ® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications.

This passively athermalized infrared lens is suitable for use with detectors up to 12 µm SXGA detectors. Its wide field of view makes it well-suited for thermal imaging applications.

Fields of view

Detector

HFoV

VFoV

DFoV

1280x1024 8 µm

23.3°

18.7°

30°

640x480 8 µm

11.7°

8.8°

14.6°

320x240 8 µm

5.8°

4.4°

7.3°

1280x1024 8.5 µm

24.8°

19.8°

32°

640x480 8.5 µm

12.4°

9.3°

15.5°

320x240 8.5 µm

6.2°

4.7°

7.8°

640×480 10 µm

14.6°

10.9°

18.2°

1280×1024 12 µm

35°

28°

45°

640×480 12 µm

17.5°

13.1°

22°

320×240 12 µm

8.8°

6.6°

10.9°

640×480 17 µm

24.8°

18.6°

31°

320×240 17 µm

12.4°

9.3°

15.5°
