Wide Band Anti Reflection 3µm-12µm

Wide Band Anti Reflection 3µm-12µm

UCS_Ge_08

Productnumber: 2Ge000034

This coating is a wide band anti-reflection coating for use in the 3-12µm waveband. Combining high transmission, low reflection and moderate environmental resistance, this coating is best suited for internal surfaces (I.S.) applications.
This coating contains no radioactive material.

Spectral - additional

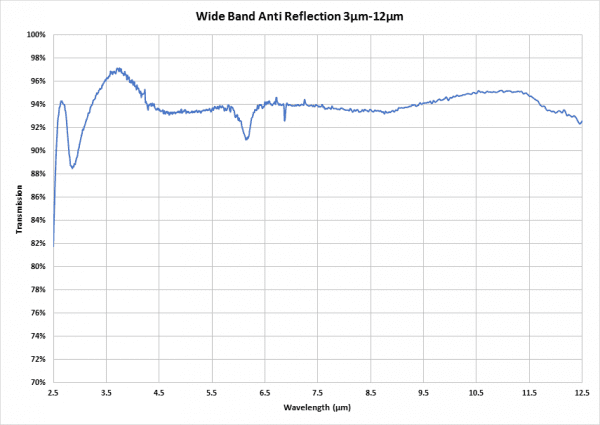

Transmission (Average)
>93% 3µm-12µm
Reflection (Average)
<3% 3µm-12µm
Angle of Incidence
0°-20°
Environmental Properties
Adhesion

MIL-C-48497A, 08/09/1980, para 4.5.3.1

Adhesion Remark

Tape Test

Humidity

MIL-C-48497A, 08/09/1980, para 4.5.3.2

Humidity Remark

24Hrs, 49°C, 95-100% relative humidity

Abrasion

MIL-C-48497A, 08/09/1980, para 4.5.3.3

Abrasion Remark

Moderate, 50 strokes with a cheesecloth

Sizes

Up to 275mm diameter
