10.6µm CO2 Laser NBP

10.6µm CO2 Laser NBP

CO2 Laser NBP

IR Narrow Bandpass Filters are designed to isolate a narrow region of the infrared spectrum between 0.85µm and 16µm and are used in a variety of applcations such as gas detection

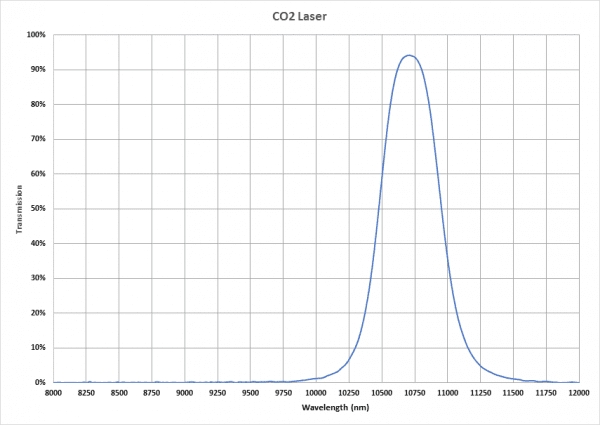

Specifications
CWL

10.6µm ± 1.0%

HBW

509nm ± 50nm

Tpeak

>70%

Environmental Properties
Adhesion

MIL-C-48497A, 08/09/1980, para 4.5.3.1

Adhesion Remark

Tape Test

Humidity

MIL-C-48497A, 08/09/1980, para 4.5.3.2

Humidity Remark

24Hrs, 49°C, 95-100% relative humidity

Abrasion

MIL-C-48497A, 08/09/1980, para 4.5.3.3

Abrasion Remark

Moderate, 50 strokes with a cheesecloth

Contact us for information or a quotation
