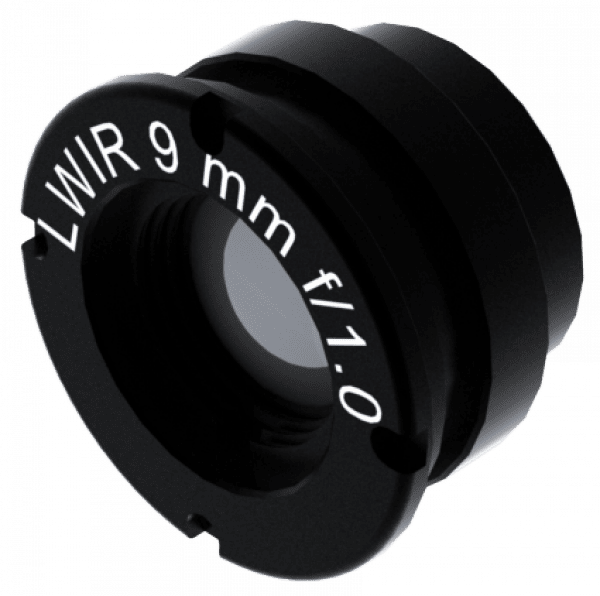

9 mm f/1.0 M18

9 mm f/1.0 M18

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This ultralight, compact, athermalized infrared lens offers superior performance and is suitable for use with 12 μm qVGA detectors or smaller. It is adapted to the latest FLIR Boson® interface. Its low distortion makes it ideally suited for use in thermal imaging applications.

Documents

Optical Properties

Product number (HEAR)

18056_100

Focal length

9 mm

F-number

f/1.0

Transmission (HEAR)

> 89%

Focus range

0.10 m to infinity with 0.80 mm refocus

Waveband

8 - 12 µm

Mechanical properties

Weight

7.3 g

Weight (HEAR)

7.3 g

Interface thread

M18×0.5

Back focal length*

4.35 mm

Flange back distance*

11.38 mm

value applicable with 0.63 mm Si window (not included)

Environmental properties

Operating temperature

-40 °C to +80 °C

Storage temperature

-57 °C to +105 °C

Fields of view

Detector
HFoV
VFoV
DFoV
320×240 12 µm
24°
18.3°
30°
320×240 10 µm
20°
15.3°
25°
80×80 34 µm
17.3°
17.3°
24°
160×120 17 µm
17.3°
13.0°
22°
206×156 12 µm
15.7°
11.9°
19.7°
160×120 12 µm
12.2°
9.2°
15.3°
80×60 17 µm
8.7°
6.5°
10.8°
