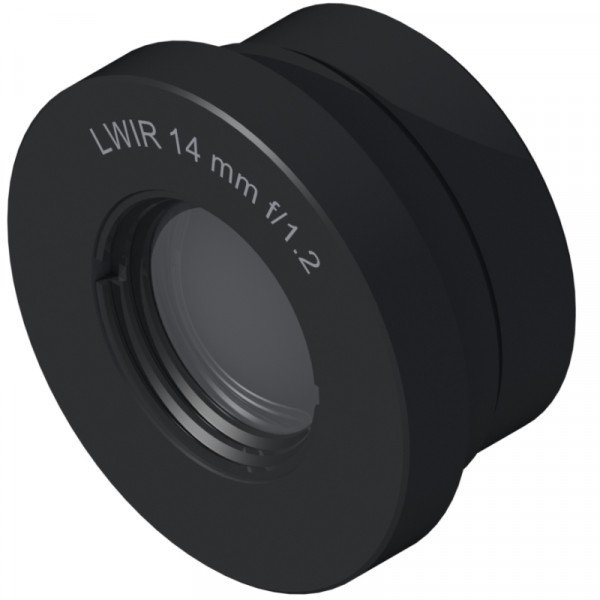

14 mm f/1.2 M25

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog IR lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications.

This ultralight, passively athermalized infrared lens offers superior performance and is suitable for use with 17 μm and 12 μm VGA detectors or smaller. Its low distortion makes it ideally suited for use in thermal imaging applications.

Documents

Datasheet [EN]

Download
技术规格书【中文】

Download

Fields of view

Detector

HFoV

VFoV

DFoV

640×480 17 µm

42.1°

31.9°

52.2°

384×288 25 µm

37.4°

28.3°

46.3°

320×240 25 µm

31.3°

23.7°

38.9°

640×480 12 µm

30.1°

22.7°

37.4°

384×288 17 µm

25.7°

19.4°

31.9°

320×240 17 µm

21.5°

16.2°

26.7°

640×480 10 µm

25.1°

18.9°

31.2°

320×240 10 µm

12.6°

9.5°

15.8°

160×120 17 µm

10.8°

8.1°

13.4°

336×256 12 µm

15.9°

12.1°

20.0°

320×240 12 µm

15.2°

11.4°

18.9°

206×156 12 µm

9.8°

7.4°

12.3°

80×80 34 µm

10.8°

10.8°

15.2°

160×120 12 µm

7.7°

5.7°

9.6°
