13 mm f/1.0 M25

13 mm f/1.0 M25

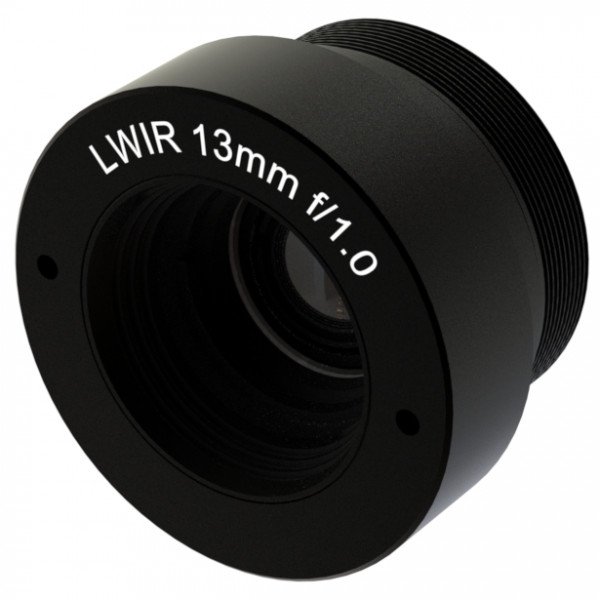

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog IR lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications.

This high-speed, passively athermalized infrared lens fits the latest 17 µm qVGA and 25 µm qqVGA uncooled detectors and smaller.

Documents

Optical Properties

Product number (HEAR)

11106_110

Product number (DLC)

11107_110

Focal length

13 mm

F-number

f/1.0

Transmission (HEAR)

> 94%

Transmission (DLC)

> 87%

Focus range

0.4 m to infinity with refocus of 0.39 mm

Waveband

8 - 12 µm

Mechanical properties

Mechanical shock

MIL-E-5400T

Mechanical shock (HEAR)

MIL-E-5400T

Mechanical shock (DLC)

MIL-E-5400T

Weight (HEAR)

23 g

Weight (DLC)

23 g

Interface thread

M25×0.5

Back focal length*

8.8 mm

Flange back distance*

19.47 mm

value applicable with 1 mm Ge window (not included)

Environmental properties

Sealing

IP67

Sealing (HEAR)

IP67

Sealing (DLC)

IP67

Solar radiation

MIL-STD-810G Method 505.5

Vibration

MIL-STD-810E Method 514.4 Proc I Cat 8

Vibration (HEAR)

MIL-STD-810E Method 514.4 Proc I Cat 8

Vibration (DLC)

MIL-STD-810E Method 514.4 Proc I Cat 8

Operating temperature

-40°C to +80°C

Storage temperature

-57°C to +105°C

Fields of view

Detector
HFoV
VFoV
DFoV
320×240 17 µm
24°
18.1°
30°
640×480 10 µm
28°
21°
35°
336×256 12 µm
17.9°
13.7°
22°
160×120 25 µm
17.8°
13.4°
22°
320×240 12 µm
17.1°
12.9°
21°
320×240 10 µm
14.3°
10.7°
17.8°
80×80 34 µm
12.1°
12.1°
17.1°
160×120 17 µm
12.1°
9.1°
15.2°
206×156 12 µm
11.0°
8.4°
13.8°
160×120 12 µm
8.6°
6.4°
10.7°
