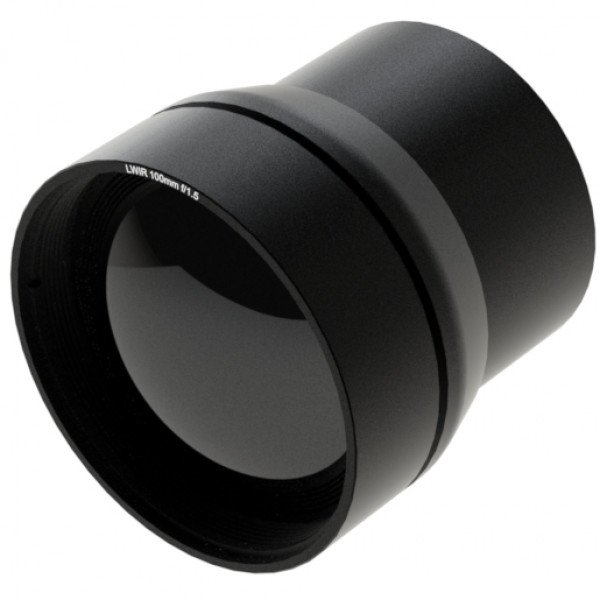

100 mm f/1.5 M34

100 mm f/1.5 M34

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog IR lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications.

This passively athermalized Super-Tele infrared lens fits the latest 17 µm XGA and 25 µm VGA uncooled detectors and smaller. Its very compact design makes it ideal for use in situations where weight is an important factor.

Documents

Optical Properties

Product number (HEAR)

24063_100

Product number (DLC)

24040_100

Focal length

100 mm

F-number

f/1.5

Transmission (HEAR)

> 94%

Transmission (DLC)

> 87%

Focus range

14 m to infinity with refocus of 0.75 mm

Waveband

8 - 12 µm

Mechanical properties

Mechanical shock (HEAR)

MIL-E-5400T

Mechanical shock (DLC)

MIL-E-5400T

Weight (HEAR)

282 g

Weight (DLC)

282 g

Interface thread

M34x0.5

Back focal length*

10.1 mm

Flange back distance*

18.3 mm

value applicable with 1 mm Ge window (not included)

Environmental properties

Sealing (HEAR)

IP67

Sealing (DLC)

IP67

Vibration (HEAR)

MIL-STD-810E Method 514.4 Proc I Cat 8

Vibration (DLC)

MIL-STD-810E Method 514.4 Proc I Cat 8

Operating temperature

-40°C to +80°C

Storage temperature

-50°C to +107°C

Fields of view

Detector
HFoV
VFoV
DFoV
1024×768 17 µm
9.7°
7.4°
12.0°
640×480 25 µm
8.9°
6.8°
11.0°
640×480 17 µm
6.2°
4.6°
7.7°
384×288 25 µm
5.5°
4.1°
6.8°
320×240 25 µm
4.5°
3.4°
5.7°
384×288 17 µm
3.7°
2.8°
4.6°
320×240 17 µm
3.1°
2.3°
3.9°
160×120 17 µm
1.6°
1.2°
1.9°
80×80 34 µm
1.6°
1.6°
2.2°
160×120 12 µm
1.1°
0.8°
1.4°
