1.5 mm f/1.2 M10

1.5 mm f/1.2 M10

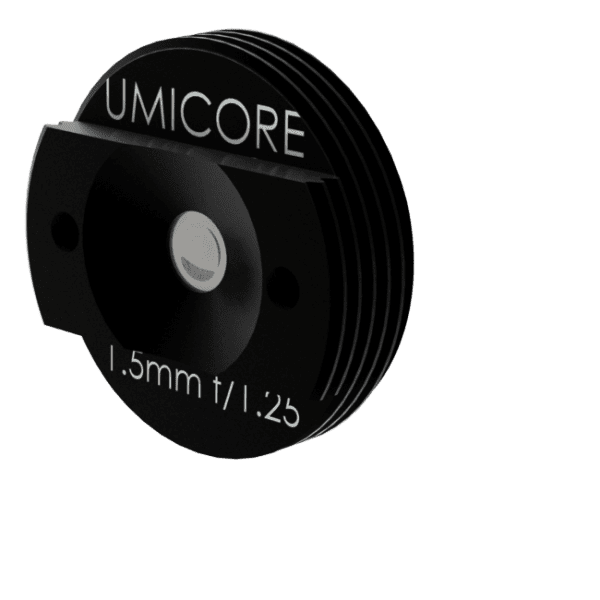

Our Tessella™ lenses are produced by Umicore's unique wafer level molding technology. Here we combine small size and diffraction limited performance with a most cost-effective manufacturing method. Our range of M10 wide-angle lenses provide dedicated solutions for low-resolution thermal imaging and sensing applications.
This ultralight, passively athermalized infrared lens offers superior performance and provides the highly sought-after 90 degree field of view. It is extremely light weight and is suitable for use with 34 μm 80×80 sensors, or smaller, higher-resolution detectors.

Documents

Optical Properties

Product number (HDAR)

14094_110

Product number (HEAR)

14094_200

Focal length

1.5 mm

F-number

f/1.2

Transmission (HDAR)

> 95%

Transmission (HEAR)

> 95%

Focus range

0.20 m to infinity with refocus of 0.13 mm

Waveband

8 - 12 µm

Mechanical properties

Weight

0.46 g

Weight (HDAR)

0.5 g

Weight (HEAR)

0.06 g

Interface thread

M10×0.5

Back focal length*

2.40 mm

Flange back distance*

N/A

value applicable with 0.725 mm Si window (not included)

Environmental properties

Operating temperature

-40 °C to +80 °C

Storage temperature

-57 °C to +105 °C

Fields of view

Detector
HFoV
VFoV
DFoV
80×80 34 µm
106°
106°
N/A°
160×120 17 µm
106°
76°
145°
206×156 12 µm
96°
70°
127°
160×120 12 µm
72°
53°
92°
80×60 12 µm
35°
35°
50°
