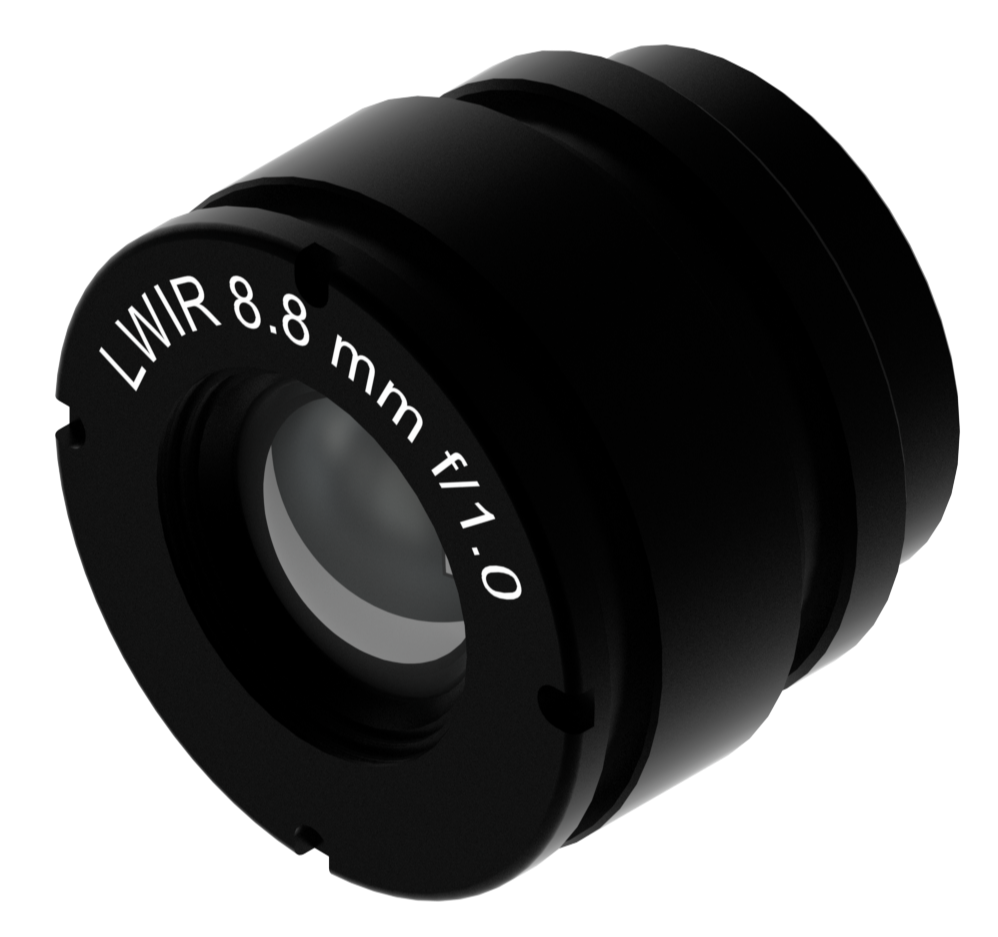

8.8 mm f/1.0 M24

8.8 mm f/1.0 M24

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This lens may be offered with other coating variants upon request. Its lightweight and compact design makes it a prime choice for your application.
This lens is compatible with 12 μm VGA detectors and smaller.

Documents

Optical Properties

Product number

19004_100

Product number (DLC)

19004_100

Focal length

8.8 mm

F-number

f/1.0

Transmission (DLC)

> 80%

Focus range

0.5 m to infinity with 0.13 mm refocus

Waveband

8 - 12 µm

Mechanical properties

Weight

27 g

Weight (DLC)

27 g

Interface thread

M24 x 0.5

Back focal length*

4.85

Flange back distance*

9.15

dimensions valid with 0.63 mm Si detector window

Environmental properties

Operating temperature

-40°C + 80°C

Storage temperature

-57°C to +105°C

Fields of view

Detector
HFoV
VFoV
DFoV
640×480 12 µm
50°
38°
64°
384×288 17 µm
43°
32°
54°
640×480 10 µm
42°
31°
53°
320×240 17 µm
35°
27°
44°
320×240 12 µm
25°
18.7°
31°
320×240 10 µm
21°
15.6°
26°
80×80 34 µm
17.7°
17.7°
25°
160×120 17 µm
17.7°
13.2°
22°
206×156 12 µm
16.1°
12.2°
20°
160×120 12 µm
12.5°
9.3°
15.6°
80x80 17µm
8.8°
8.8°
12.5°
80 x 80 12 µm
6.2°
6.2°
8.8°
