Dual Band SupermaxR 10.6µm & 633nm

Dual Band SupermaxR 10.6µm & 633nm


Productnumber: 1Cu000005

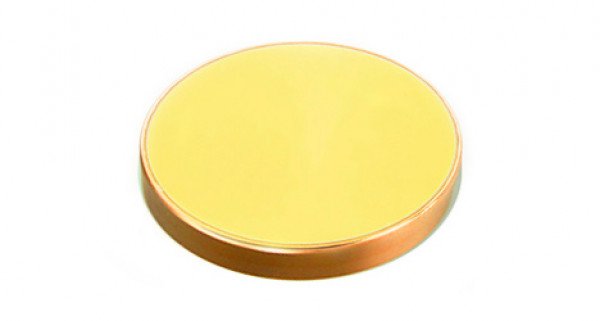

Deposited onto diamond turned copper, this non-radioactive coating combines high reflectivity and low absorption for CO2 lasers up to 5kW as well as enhancing HeNe laser wavelengths.

It is an extremely rugged coating and can withstand regular cleaning.



>99.8% 10.6µm , >75% 633nm

Spectral - additional

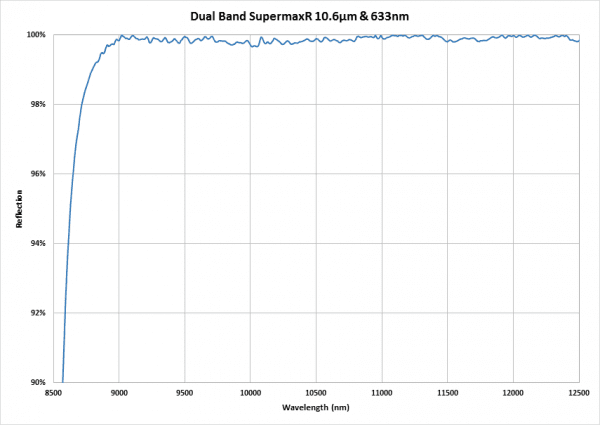

Reflection (Average)
>99.8% 10.6µm , >75% 633nm @ 45° AOI
Phase Shift
< ±2° from zero @ 45° AOI
Environmental Properties

MIL-C-48497A, 08/09/1980, para

Adhesion Remark

Tape Test


MIL-C-48497A, 08/09/1980, para

Humidity Remark

24Hrs, 49°C, 95-100% relative humidity


MIL-C-48497A, 08/09/1980, para

Abrasion Remark

Severe, 20 strokes Eraser


Up to 275mm diameter

Contact us for information or a quotation
