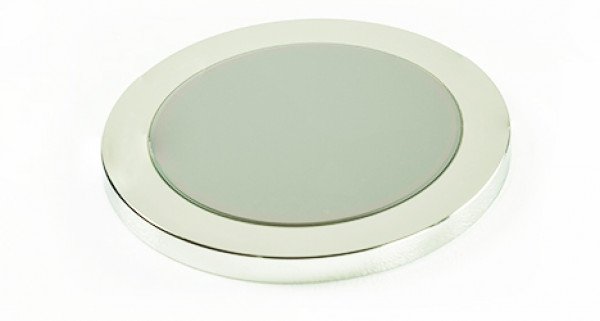

Wide Bandpass Filter

Wide Bandpass Filter

Wide bandpass filters are designed to isolate a wide spectral band and exhibit high peak transmission in the passband. TypicallyT>80% average. Available wavelengths are 1um – 15um.

Actions

Spectral - additional

Transmission
>85%
Attenuation
<0.1% outside passband
Edge Slopes
3%-5% typically

Environmental Properties

Adhesion

MIL-C-48497A, 08/09/1980, para 4.5.3.1

Adhesion Remark

Tape test

Humidity

MIL-C-48497A, 08/09/1980, para 4.5.3.2

Humidity Remark

24hrs, 48°, 95% relative humidity

Abrasion

MIL-C-48497A, 08/09/1980, para 4.5.3.3

Abrasion Remark

Moderate, 50 strokes with a cheesecloth
