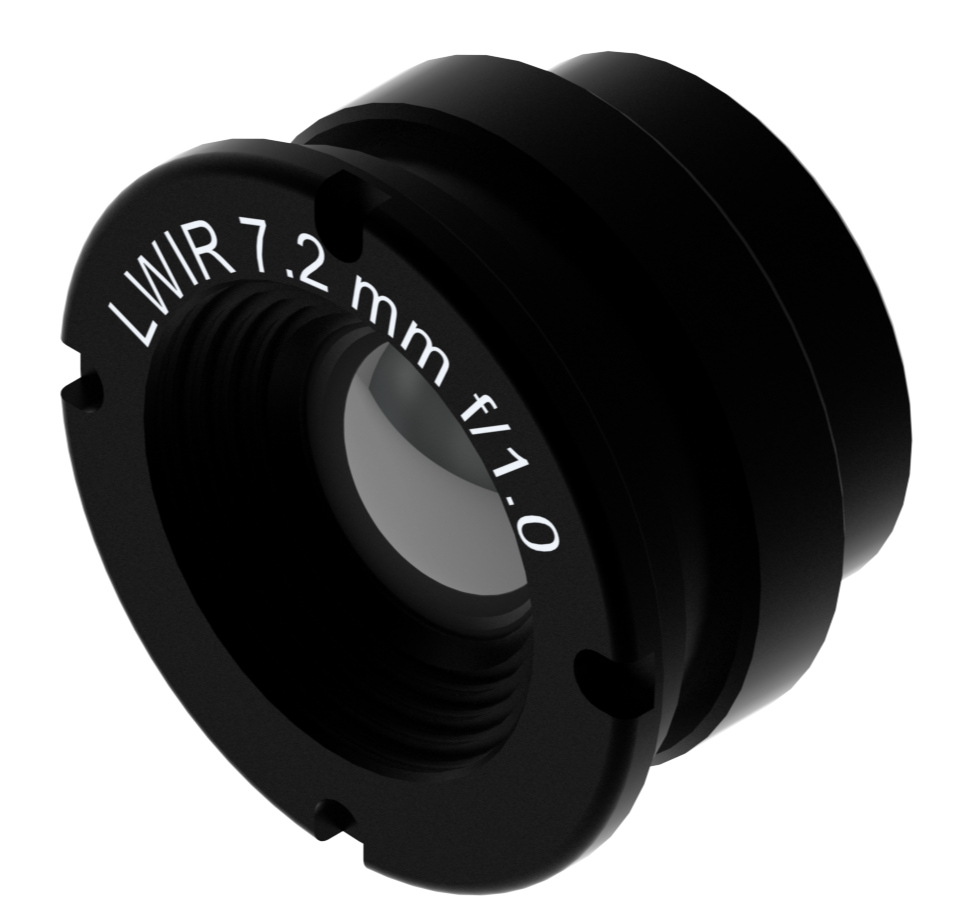

7.2 mm f/1.0 M18

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This lens may be offered with other coating variants upon request. Its lightweight and distortion free design makes it a prime choice for your application.
This lens is compatible with 12 μm QVGA detectors and smaller.

Datasheet  (2.8M )

Optical Properties

Product number

19064_100

Focal length

7.2 mm

F-number/Aperture

f/1.0

Transmission

>94%

Focus range

0.14 m to infinity with 0.34 mm refocus

Waveband

8 - 12 µm

Mechanical Properties

Weight

7.9 g

Interface thread

M18 x 0.5

Back focal length*

4.35

Flange back distance*

8.35

*: dimensions walid with 0.63 mm Si detector window

Environmental Properties

Operating temperature

-40°C to +80°C

Storage temperature

-57° to + 105°C

Optical Properties

Product number

18070_100

Focal length

7.2 mm

F-number/Aperture

f/1.0

Transmission

>87%

Focus range

0.14 m to infinity with 0.34 mm refocus

Waveband

8 - 12 µm

Mechanical Properties

Weight

7.9 g

Interface thread

M18 x 0.5

Back focal length*

4.35

Flange back distance*

8.35

*: dimensions walid with 0.63 mm Si detector window

Environmental Properties

Operating temperature

-40°C to +80°C

Storage temperature

-57° to + 105°C

Fields of View

Detector

HFoV

VFoV

DFoV

320×240 12 µm

30°

23°

37°

320×240 10 µm

25°

19.0°

31°

80×80 34 µm

21°

21°

30°

160×120 17 µm

21°

16.2°

27°

206×156 12 µm

19.5°

14.8°

24°

160×120 12 µm

15.2°

11.4°

19.0°

80x80 17µm

10.8°

10.8°

15.2°

80×60 17 µm

10.8°

8.1°

13.5°

80 x 80 12 µm

7.6°

7.6°

10.8°
