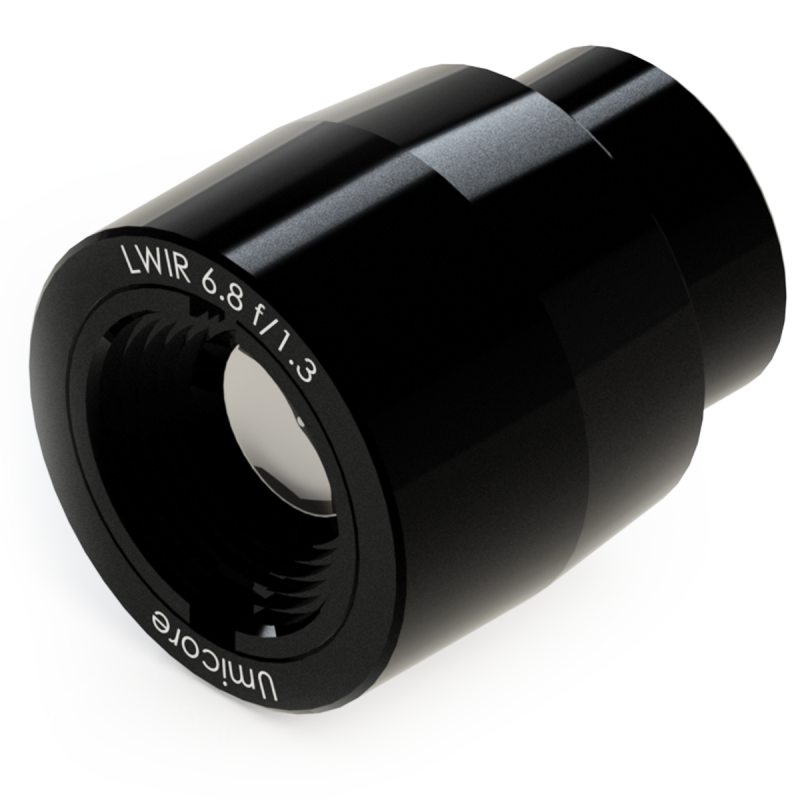

6.8 mm f/1.3 M10

Umicore's GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog IR lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications.

This passively athermalized wide-angle infrared lens fits the latest 17 µm qVGA as well as 25 µm qqVGA uncooled detectors.

HEAR  (1.1M )

Optical Properties

Product number

16083_100

Focal length

6.8 mm

F-number/Aperture

f/1.3

Transmission

> 97%

Focus range

0.1 m to infinity with refocus of 0.43 mm

Waveband

8 - 12 µm

Mechanical Properties

Weight

7 g

Interface thread

M10x0.5

Back focal length*

2.8 mm

Flange back distance*

7.30 mm

*: value applicable with 0.725 mm Si window (not included)

Environmental Properties

Operating temperature

-40°C to +60°C

Storage temperature

-57°C to +105°C

Fields of View

Detector

HFoV

VFoV

DFoV

32x32 90µm

24.4°

24.4°

34.7°

80x80 34µm

22.1°

23.1°

32.8°

160x120 17µm

22.1°

17.3°

28.9°

206x156 12µm

21.0°

15.9°

26.3°

60x60 40µm

20.4°

20.4°

28.9°

160x120 12µm

16.3°

12.2°

20.4°

80x60 17µm

11.5°

8.6°

14.4°

80x60 12µm

8.1°

6.1°

10.2°

160x120 25µm

34.1°

°

°

80x60 25µm

17.0°

°

°

384x288 17µm

56.3°

°

°

320x240 17µm

46.7°

°

°

336x256 12µm

35.0°

°

°

320x240 12µm

32.4°

°

°

320x240 10µm

34.1°

°

°
