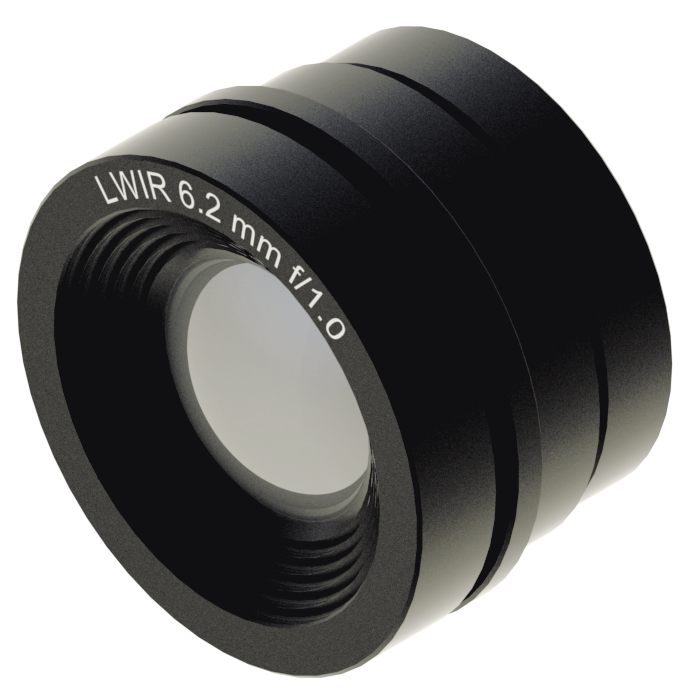

6.2 mm f/1.0 M25

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This athermalized lens offers superior performance from -40 ◦C to +80 ◦C. Its lightweight and compact design make it a prime choice for your application.
This lens is compatible with 12 µm VGA detectors and smaller

iDLC datasheet  (882.6K )

Optical Properties

Product number

17055_100

Focal length

6.2 mm

F-number/Aperture

f/1.0

Transmission

> 86%

Focus range

0.28 m to infinity with 0.12 mm refocus

Waveband

8 - 12 µm

Mechanical Properties

Mechanical shock

MIL-E-5400T

Weight

25.6 g

Interface thread

M25×0.5

Back focal length*

9.00 mm

Flange back distance*

19.47 mm

*: value applicable with 1 mm Ge window (not included)

Environmental Properties

Sealing

IP67

Solar radiation

MIL-STD-810G Method 505.5

Vibration

MIL-STD-810G Method 514.6C-II / Cat. 4

Operating temperature

-40 °C to +80 °C

Storage temperature

-57 °C to + 105 °C

Fields of View

Detector

HFoV

VFoV

DFoV

640x512 12µm

75.0°

58.7°

100.1°

640x480 12µm

75.0°

54.8°

97.2°

384x288 17µm

62.7°

46.1°

80.3°

320x240 17µm

51.5°

38.2°

65.5°

320x240 12µm

35.9°

26.7°

45.2°

320x240 25µm

78.5°

57.2°

102.1°

160x120 17µm

25.2°

18.9°

31.7°

336x256 12µm

37.7°

28.6°

47.8°

206x156 12µm

22.9°

17.3°

28.8°

80x80 34µm

25.2°

25.2°

35.9°

640x480 10µm

61.3°

45.2°

78.6°

320x240 10µm

29.8°

22.2°

37.4°
