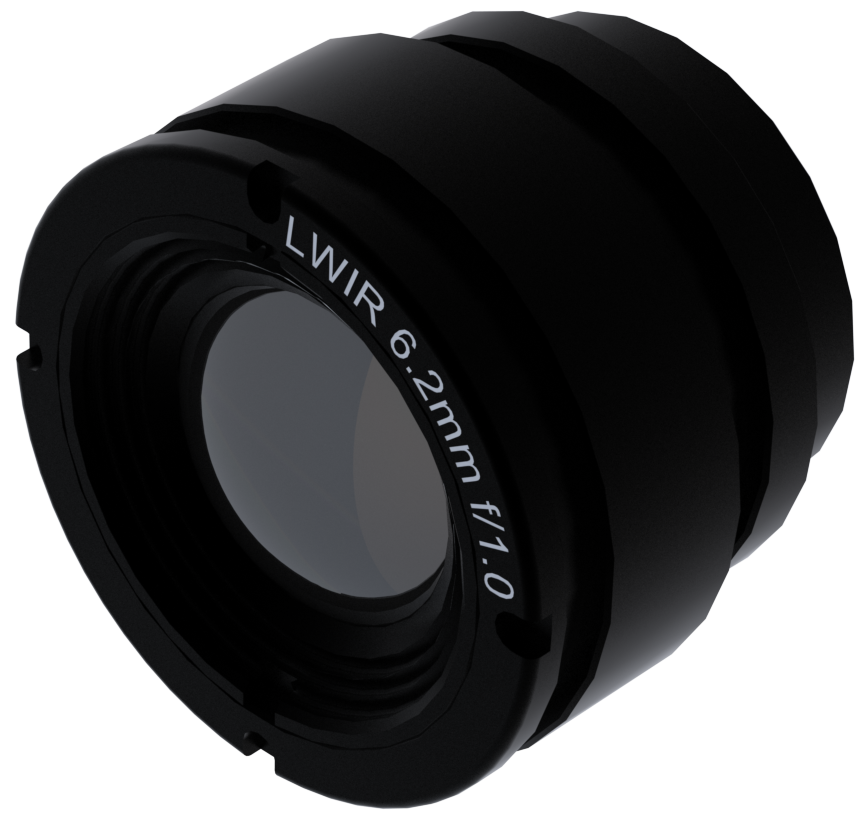

6.2 mm f/1.0 M24

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This athermalized lens offers superior performance from -40°C to +80°C. Its fast aperture and sharp imaging make it a prime choice for your application. It is adapted to the latest FLIR Boson® interface. This lens is compatible with 12 μm VGA detectors and smaller.

HEAR  (738.7K )

Optical Properties

Product number

18055_100

Focal length

6.2 mm

F-number/Aperture

f/1.0

Transmission

>87%

Focus range

0.28 m to infinity with 0.12 mm refocus

Waveband

8-12 µm

Mechanical Properties

Weight

25.8 g

Interface thread

M24x0.5

Back focal length*

4.85 mm

Flange back distance*

15.40

*:

Environmental Properties

Sealing

IP67

Operating temperature

-40°C to +80°C

Storage temperature

-57°C to +105°C

Fields of View

Detector

HFoV

VFoV

DFoV

640x512 12µm

75.0°

58.7°

100.1°

640x480 12µm

75.0°

54.8°

97.2°

384x288 17µm

62.7°

46.1°

80.3°

320x240 17µm

51.5°

38.2°

65.5°

320x240 12µm

35.9°

26.7°

45.2°

160x120 17µm

25.2°

°

°

336x256 12µm

37.7°

°

°

206x156 12µm

22.9°

°

°

640x480 10µm

61.3°

°

°

320x240 10µm

30.7°

°

°

80x80 34µm

25.2°

°

°
