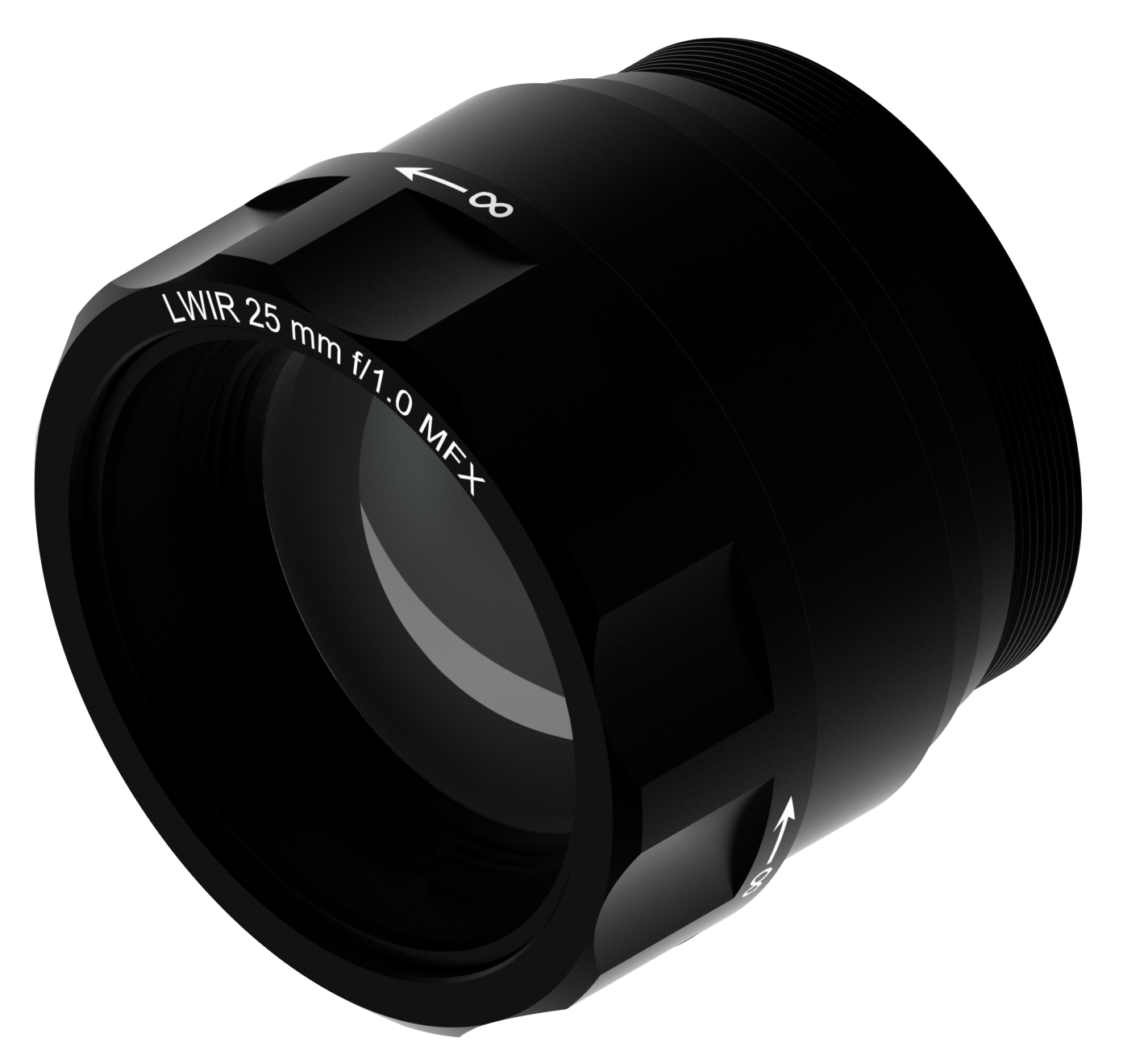

25 mm f/1.0 M24 - MFX

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This lens may be offered with other coating variants upon request. Its lightweight and cost-effective design makes it a prime choice for your application.
This lens is compatible with 12 μm VGA detectors and smaller

Datasheet  (2.7M )

Optical Properties

Product number

18063_100

Focal length

25 mm

F-number/Aperture

f/1.0

Focus range

0.5 m to infinity with 190° ring rotation

Waveband

8 - 12 µm

Mechanical Properties

Weight

84 g

Interface thread

M34 x 0.5

Back focal length*

9.8

*: dimensions valid with 1.0 mm Ge detector window

Fields of View

Detector

HFoV

VFoV

DFoV

640×480 12 µm

17.6°

13.2°

22°

384×288 17 µm

15.0°

11.2°

18.7°

640×480 10 µm

14.7°

11.0°

18.3°

320×240 17 µm

12.5°

9.4°

15.6°

320×240 12 µm

8.8°

6.6°

11.0°

320×240 10 µm

7.3°

5.5°

9.2°

80×80 34 µm

6.2°

6.2°

8.8°

160×120 17 µm

6.2°

4.7°

7.8°

160×120 12 µm

4.4°

3.3°

5.5°

80×60 17 µm

3.1°

2.3°

3.9°

80 x 80 12 µm

2.2°

2.2°

3.1°
