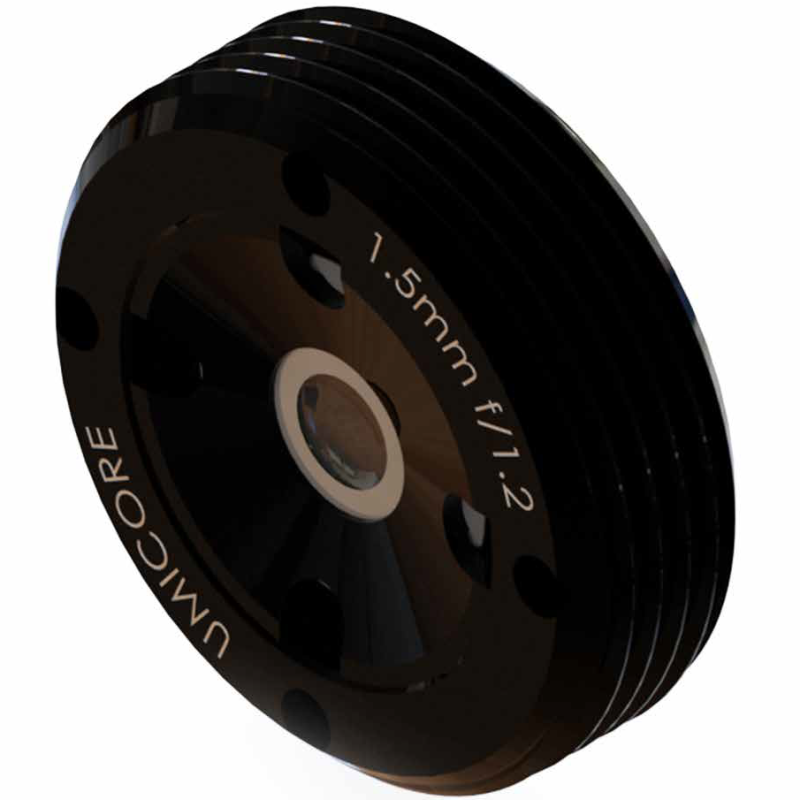

1.5 mm f/1.2 M10

Our Tessella™ lenses are produced by Umicore's unique wafer level molding technology. Here we combine small size and diffraction limited performance with a most cost-effective manufacturing method. Our range of M10 wide-angle lenses provide dedicated solutions for low-resolution thermal imaging and sensing applications.
This ultralight, passively athermalized infrared lens offers superior performance and provides the highly sought-after 90 degree field of view. It is extremely light weight and is suitable for use with 34 μm 80×80 sensors, or smaller, higher-resolution detectors.

HDAR datasheet  (792.3K )

Optical Properties

Product number

14094_110

Focal length

1.5 mm

F-number/Aperture

f/1.2

Transmission

> 95%

Focus range

0.20 m to infinity with refocus of 0.13 mm

Waveband

8 - 12 µm

Mechanical Properties

Weight

0.46 g

Interface thread

M10×0.5

Back focal length*

2.40 mm

Flange back distance*

N/A

*: value applicable with 0.725 mm Si window (not included)

Environmental Properties

Operating temperature

-40 °C to +80 °C

Storage temperature

-57 °C to +105 °C

Fields of View

Detector

HFoV

VFoV

DFoV

80x80 34µm

105.2°

105.2°

N/A°

160x120 17µm

105.2°

75.3°

149.4°

206x156 12µm

95.7°

69.9°

129.9°

160x120 12µm

71.9°

53.0°

92.4°

80x60 12µm

34.6°

25.8°

43.4°
