Ultralo Anti Reflection Coating 10.6µm

UCS_ZAR_74

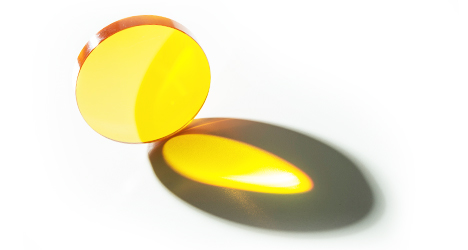

This coating is used on Zinc Selenide lenses and windows in high power laser applications where ultra low absorption is important.



Specifications

Tavg

>99.35%

For a 2mm thick witness piece, coated on both sides with UCS_ZAR_74.

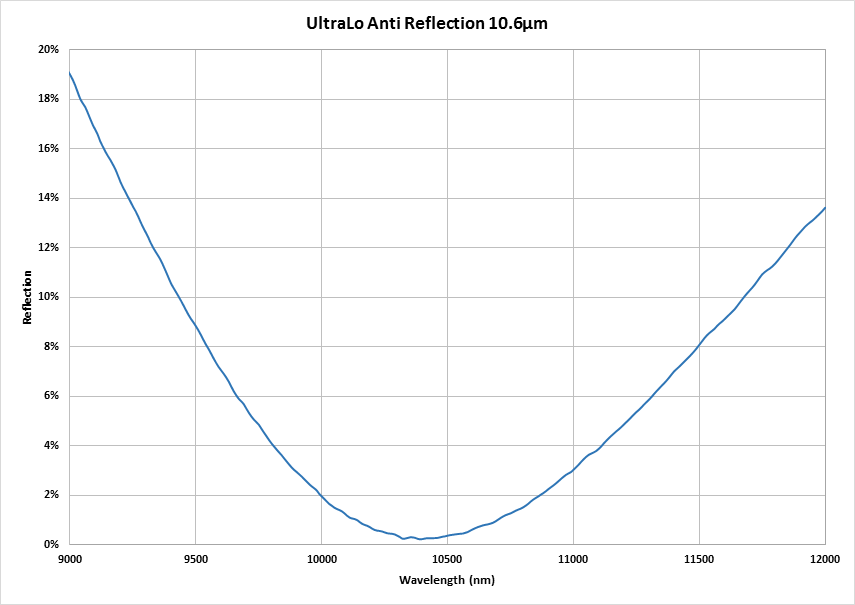

Ravg

<0.25% per surface

Per surface, for a 2mm thick witness piece, coated with UCS_ZAR_74.

Absorption

<0.17%

Environmental Properties

Adhesion

MIL-C-48497A, 08/09/1980, para 4.5.3.1

Tape Test

Humidity

MIL-C-48497A, 08/09/1980, para 4.5.3.2

24Hrs, 49°C, 95-100% relative humidity

Abrasion

MIL-C-48497A, 08/09/1980, para 4.5.3.3

Moderate, 50 strokes with a cheesecloth

Sizes

Sizes

Up to 300mm diameter
