High Efficiency Anti Reflection Coating 8µm-12µm

UCS_ZAR_03

Product no: 2ZnSe000015

This coating is used on Zinc Selenide lenses and windows in thermal imaging systems and can be used as a colour corrector in these systems.



Specifications

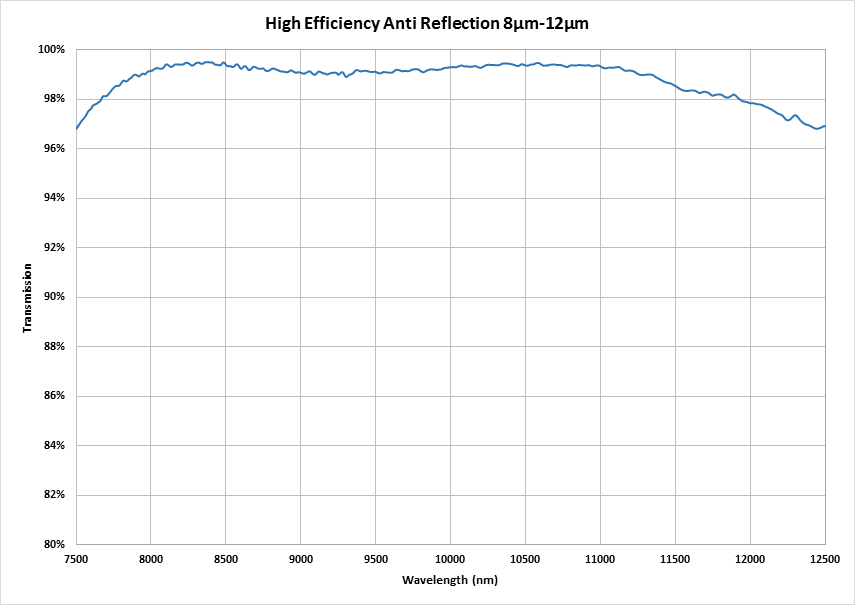

Transmission (Average)

>98% 8µm-12µm

For a 1mm thick witness piece, coated on both sides with UCS_ZAR_03.

Reflection (Average)

<0.5% 8µm-12µm

Per surface, For a 1mm thick witness piece, coated with UCS_ZAR_03.

Environmental Properties

Adhesion

MIL-C-48497A, 08/09/1980, para 4.5.3.1

Tape Test

Humidity

MIL-C-48497A, 08/09/1980, para 4.5.3.2

24Hrs, 49°C, 95-100% relative humidity

Abrasion

MIL-C-48497A, 08/09/1980, para 4.5.3.3

Moderate, 50 strokes with a cheesecloth

Sizes

Sizes

Up to 300mm diameter
