High Durability Anti Reflection 3µm-5µm

UCS_Si_03

Product no: 2Si000054

This durable coating can be used in rugged environments where regular cleaning is necessary. It is used in thermal imaging applications and combines high transmission with durability and meets modular interface surface (MIS) requirements.

This coating contains no radioactive material.



Specifications

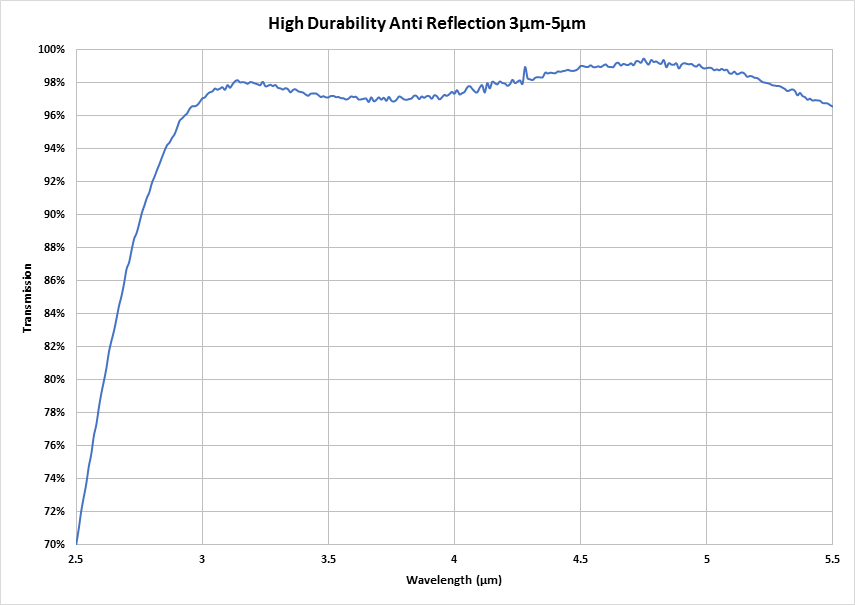

Transmission (Average)

>97% 3µm-5µm

For a 1mm thick witness piece, coated both faces with UCS_SI_01

Reflection (Average)

<1% 3µm-5µm

Per surface for a 1mm thick witness piece, coated one face with UCS_SI_01

Angle of Incidence

0°-20°

Environmental Properties

Adhesion

MIL-C-48497A, 08/09/1980, para 4.5.3.1

Tape Test

Humidity

MIL-C-48497A, 08/09/1980, para 4.5.3.2

24Hrs, 49°C, 95-100% relative humidity

Abrasion

MIL-C-48497A, 08/09/1980, para 4.5.5.1

Severe, 20 strokes Eraser

Salt spray

MIL-C-675C, 22/08/1980, para 4.5.9

24hrs salt spray fog exposure

Salt solution

MIL-C-48497A, 08/09/1980, para 4.5.5.2

24hrs immersion in salt water

Sizes

Sizes

Up to 275mm diameter
