Wide Band Anti Reflection 3µm-12µm

UCS_Ge_08

Product no: 2Ge000034

This coating is a wide band anti-reflection coating for use in the 3-12µm waveband. Combining high transmission, low reflection and moderate environmental resistance, this coating is best suited for internal surfaces (I.S.) applications.
This coating contains no radioactive material.

Specifications

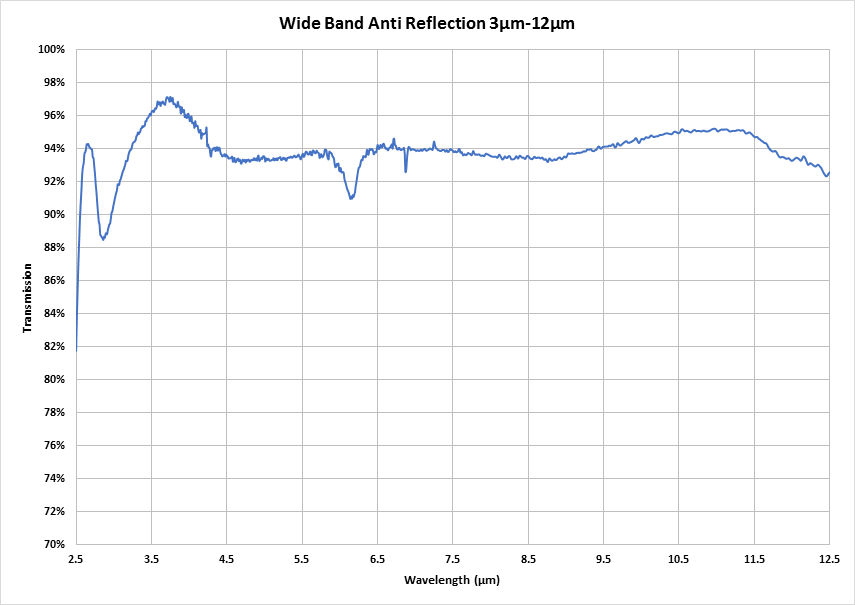

Transmission (Average)

>93% 3µm-12µm

Reflection (Average)

<3% 3µm-12µm

Angle of Incidence

0°-20°

Environmental Properties

Adhesion

MIL-C-48497A, 08/09/1980, para 4.5.3.1

Tape Test

Humidity

MIL-C-48497A, 08/09/1980, para 4.5.3.2

24Hrs, 49°C, 95-100% relative humidity

Abrasion

MIL-C-48497A, 08/09/1980, para 4.5.3.3

Moderate, 50 strokes with a cheesecloth

Sizes

Sizes

Up to 275mm diameter
