High Durability Anti Reflection 8µm-12µm

UCS_GASIR5_02

Product no: 2Gas5000013

This coating offers high transmission in the pass band 8-12µm. It is a durable coating that can withstand severe abrasion. This coating can be used in external environmental conditions where regular cleaning is required.

This coating contains no radioactive material.



Specifications

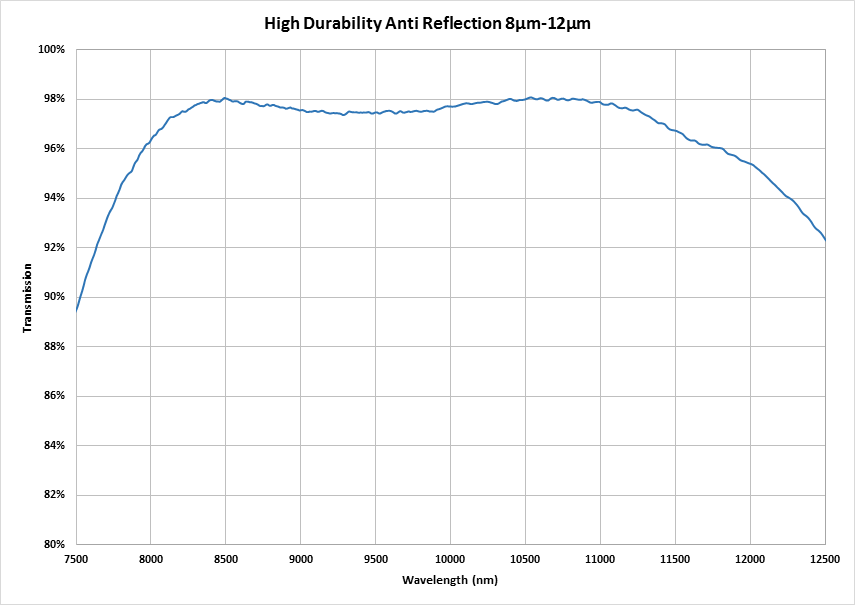

Transmission (Average)

>95% 8µm-12µm

For a 2mm thick witness piece, coated one face high durability UCS_GASIR5_02 and second side with high efficiency UCS_GASIR5_01.

Reflection (Average)

<3% 8µm-12µm

Per surface, for a 2mm thick witness piece, coated one side UCS_GASIR5_02.

Angle of Incidence

0°-20°

Environmental Properties

Adhesion

MIL-C-48497A, 08/09/1980, para 4.5.3.1

Tape Test

Humidity

MIL-C-48497A, 08/09/1980, para 4.5.3.2

72Hrs, 49°C, 95-100% relative humidity

Abrasion

MIL-C-48497A, 08/09/1980, para 4.5.5.1

Severe, 20 strokes Eraser

Sizes

Sizes

Up to 275mm diameter
