High Durability Anti Reflection 8µm-12µm

UCS_GASIR1_02

Product no: 2Gas1000002

This coating offers high transmission in the pass band 8-12µm. It is a durable coating that can withstand severe abrasion. This coating can be used in external environmental conditions where regular cleaning is required.

This coating contains no radioactive material.



Specifications

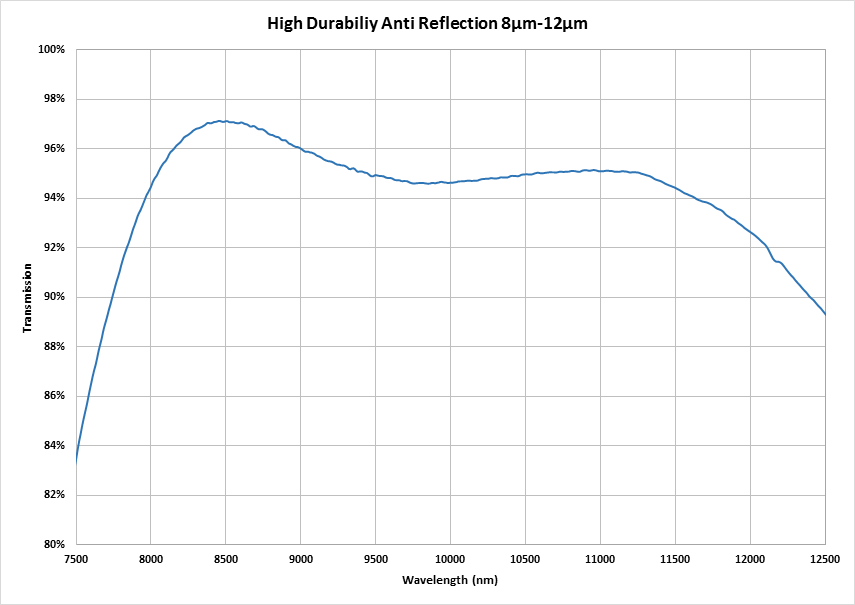

Transmission (Average)

>95% 8µm-12µm

For a 2mm thick witness piece, coated one face with high durability UCS_GASIR_02 and second face with high efficiency UCS_GASIR_01.

Reflection (Average)

<3% 8µm-12µm

Per Surface, for a 2mm thick witness piece, coated one face with UCS_GASIR_02.

Angle of Incidence

Environmental Properties

Adhesion

MIL-C-48497A, 08/09/1980, para 4.5.3.1

Tape Test

Humidity

MIL-C-48497A, 08/09/1980, para 4.5.3.2

72Hrs, 49°C, 95-100% relative humidity

Abrasion

MIL-C-48497A, 08/09/1980, para 4.5.5.1

Severe, 20 strokes Eraser

Sizes

Sizes

Up to 275mm diameter
