SupermaxR 10.6µm

UCS_Si_21

Product no: 1Si000001

Deposited onto silicon, this coating offers high reflectivity and low absorption for C02 lasers up to 5kW. It is an extremely rugged coating and can withstand regular cleaning. It is intended for use within the laser cavity or externally for laser beam guidance.
Supermax R can be optimised for 0° or 45° AOI. A dual band version is available to enhance HeNe laser wavelengths.

Specifications

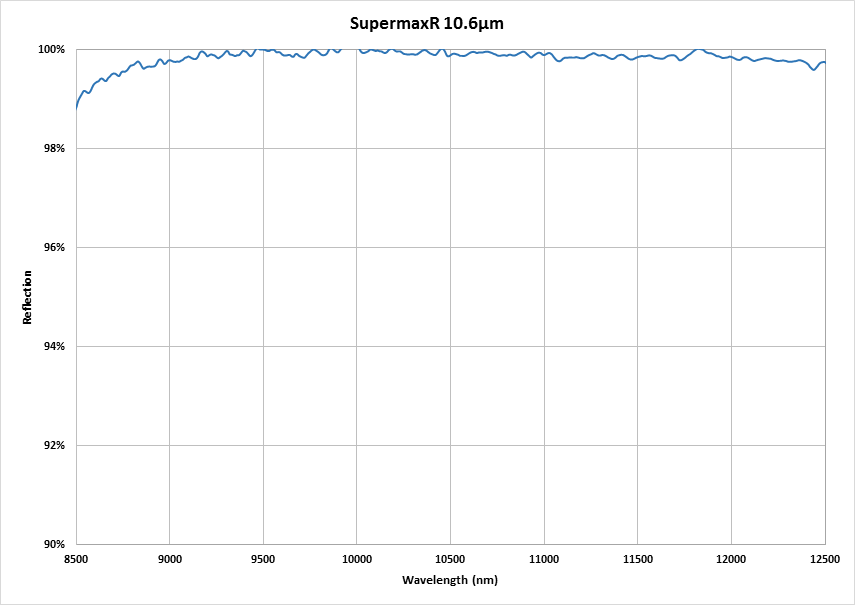

Reflection (Average)

>99.8% s-pol, >99.7% p-pol @ 45° AOI

Absorption

<0.2%

Phase Shift

<±2° from zero @ 45° AOI

Environmental Properties

Adhesion

MIL-C-48497A, 08/09/1980, para 4.5.3.2

Tape Test

Humidity

MIL-C-48497A, 08/09/1980, para 4.5.3.2

24Hrs, 49°C, 95-100% relative humidity

Abrasion

MIL-C-48497A, 08/09/1980, para 4.5.5.1

Severe, 20 strokes Eraser

Sizes

Sizes

Up to 275mm diameter
