Dual Band SupermaxR 10.6µm & 633nm

UCS_Si_15

Product no: 1Si000003

Deposited onto Silicon, this non-radioactive coating combines high reflectivity and low absorption for CO2 lasers up to 5kW as well as enhancing HeNe laser wavelengths.

It is an extremely rugged coating and can withstand regular cleaning.



Specifications

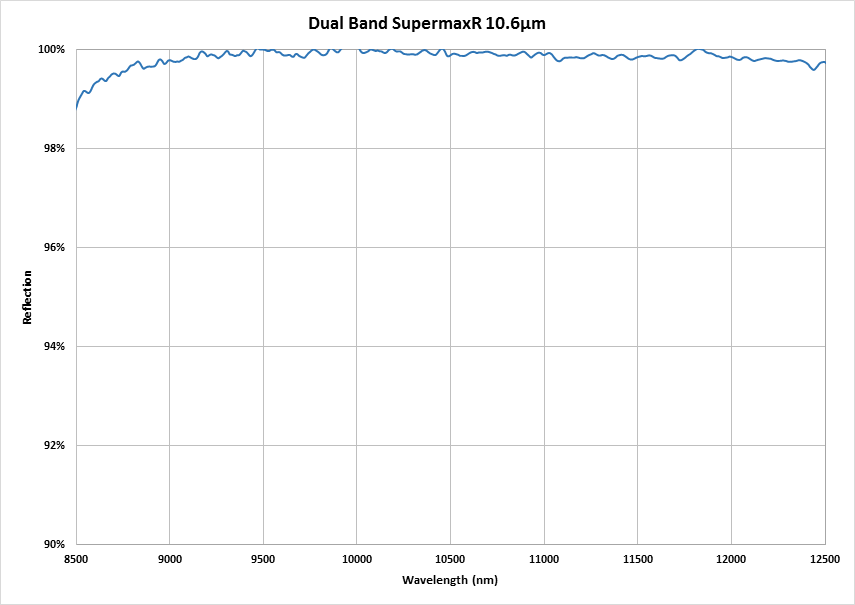

Reflection (Average)

>99.8% 10.6µm, >75% 633nm @ 45° AOI

Absorption

<0.2%

Phase Shift

<±2°from zero @ 45° AOI

Environmental Properties

Adhesion

MIL-C-48497A, 08/09/1980, para 4.5.3.1

Tape Test

Humidity

MIL-C-48497A, 08/09/1980, para 4.5.3.2

24Hrs, 49°C, 95-100% relative humidity

Abrasion

MIL-C-48497A, 08/09/1980, para 4.5.5.1

Severe, 20 strokes Eraser

Sizes

Sizes

Up to 275 diameter
