3.26µm C2H4 NBP

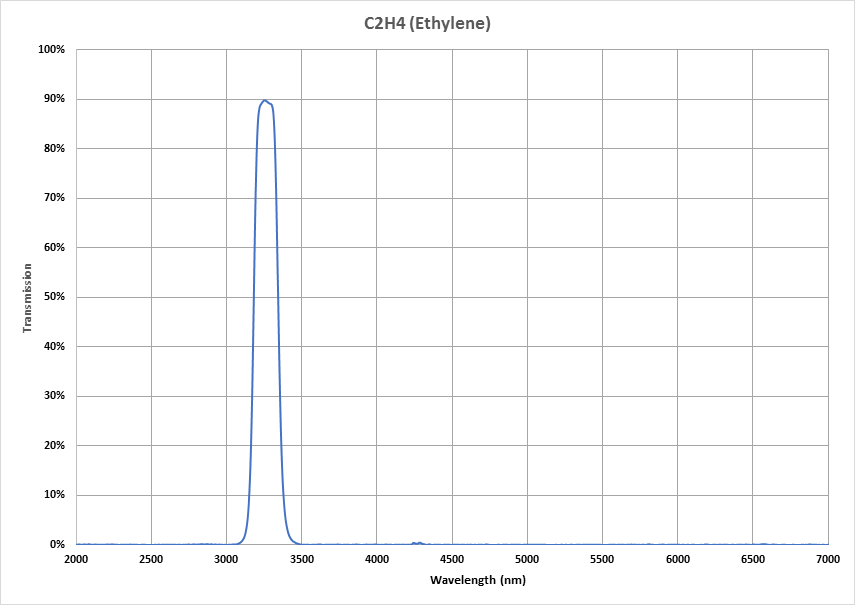

C2H4 (Ethylene)

IR Narrow Bandpass Filters are designed to isolate a narrow region of the infrared spectrum between 0.85µm and 16µm and are used in a variety of applcations such as gas detection

Specifications

CWL

3.26µm ± 0.5%

HBW

170nm ± 17nm

Tpeak

>70%

Blocking

UV - FIR

AOI

Temperature

25°C

Environmental Properties

Adhesion

MIL-C-48497A, 08/09/1980, para 4.5.3.1

Tape Test

Humidity

MIL-C-48497A, 08/09/1980, para 4.5.3.2

24Hrs, 49°C, 95-100% relative humidity

Abrasion

MIL-C-48497A, 08/09/1980, para 4.5.3.3

Moderate, 50 strokes with a cheesecloth
