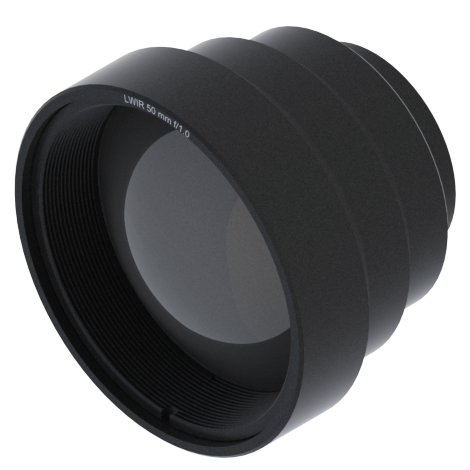

50 mm f/1.0

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications.
This athermalized lens offers superior performance over a wide temperature range. Its lightweight and intuitive design make it a prime choice for your application. This lens is compatible with 12 μm XGA detectors and smaller.



HEAR  (484.5K )
DLC/iDLC  (504.5K )

Optical Properties

Product number

16099_100

Focal length

50 mm

F-number/Aperture

f/1.0

Transmission

> 94% average over waveband

Focus range

5.0 m to infinity with 0.48 mm refocus

Waveband

8-12 µm

Mechanical Properties

Weight

142 g

Interface thread

M34x0.5 - 6 g

Back focal length*

11.6

Flange back distance*

18.3

*: 1 mm Ge

Environmental Properties

Storage temperature

-57 C to +105 C

Optical Properties

Product number

16058_100

Focal length

50 mm

F-number/Aperture

f/1.0

Transmission

> 87% average over waveband

Focus range

5.0 m to infinity with 0.48 mm refocus

Waveband

8-12 µm

Mechanical Properties

Weight

142 g

Interface thread

M34x0.5 - 6 g

Back focal length*

11.6

Flange back distance*

18.3

*: 1 mm Ge

Environmental Properties

Storage temperature

-57 C to +105 C

Fields of View

Detector

HFoV

VFoV

DFoV

1024x768 12µm

13.9°

10.4°

72.2°

640x480 17µm

12.3°

9.9°

15.7°

640x480 12µm

8.7°

6.6°

10.9°

320x240 17µm

6.2°

4.7°

7.7°

640x512 17µm

12.3°

9.9°

15.7°

640x512 12µm

8.7°

7.0°

11.1°

320x240 12µm

4.4°

3.3°

5.5°

640x480 10µm

7.3°

°

°

320x240 10µm

3.7°

°

°

384x288 25µm

10.7°

°

°

320x240 25µm

9.0°

°

°

384x288 17µm

7.4°

°

°

160x120 17µm

3.1°

°

°

336x256 12µm

4.6°

°

°

206x156 12µm

2.8°

°

°

80x80 34µm

3.1°

°

°
