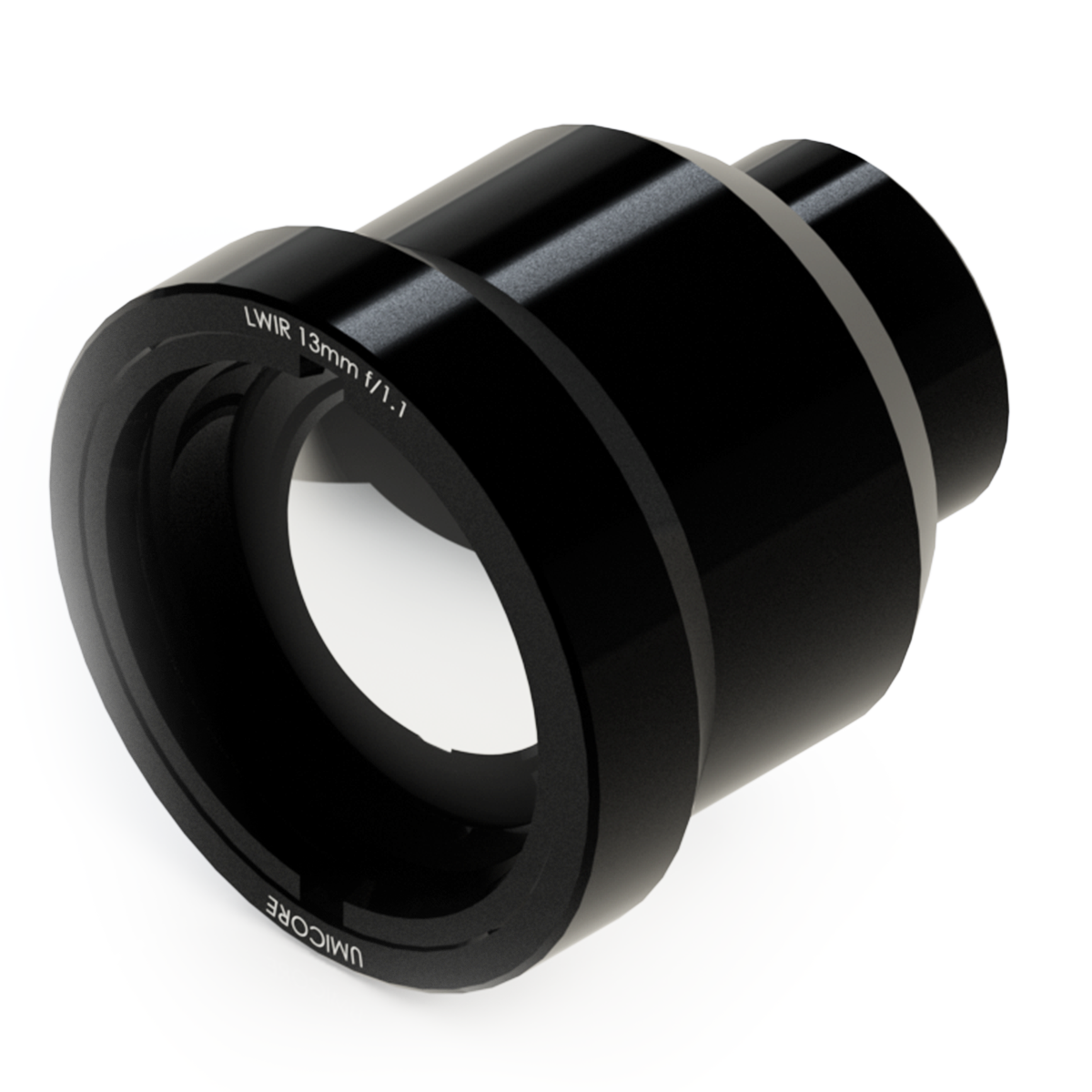

13 mm f/1.1 M10 - Athermalized Infrared Lens

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog IR lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications.

This high-speed, passively athermalized infrared lens fits the latest 17 µm qVGA and 25 µm qqVGA uncooled detectors and smaller.

HEAR  (1.0M )

Optical Properties

Product number

16084_100

Focal length

13 mm

F-number/Aperture

f/1.1

Transmission

> 94%

Focus range

0.2 m to infinity with refocus of 0.8 mm

Waveband

8 - 12 µm

Mechanical Properties

Weight

11 g

Interface thread

M10x0.5

Back focal length*

2.8 mm

Flange back distance*

7.3 mm

*: value applicable with 0.725 mm Si window (not included)

Environmental Properties

Operating temperature

-10 °C to +50 °C

Storage temperature

-57 °C to +105 °C

Fields of View

Detector

HFoV

VFoV

DFoV

32x32 90 µm

12.8°

12.8°

18.1°

80x80 34 µm

12.1°

12.1°

17.1°

160x120 17 µm

12.1°

9.1°

15.1°

60x60 40 µm

10.7°

10.7°

15.1°

206x156 12 µm

11.0°

8.4°

13.8°

160x120 12 µm

8.6°

6.4°

10.7°

80x60 17 µm

6.1°

4.6°

7.6°

80x60 12 µm

4.3°

3.2°

5.4°
