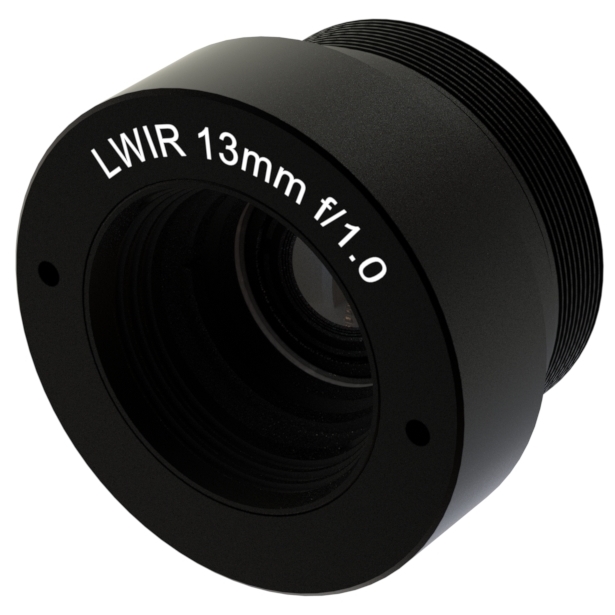

13 mm f/1.0 - Athermalized Infrared Lens

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog IR lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications.

This high-speed, passively athermalized infrared lens fits the latest 17 µm qVGA and 25 µm qqVGA uncooled detectors and smaller.

HEAR  (572.3K )
DLC/iDLC  (572.1K )

Optical Properties

Product number

11106_110

Focal length

13 mm

F-number/Aperture

f/1.0

Transmission

> 94%

Focus range

0.4 m to infinity with refocus of 0.4 mm

Waveband

8 - 12 µm

Mechanical Properties

Mechanical shock

MIL-E-5400T

Weight

23 g

Interface thread

M25x0.5

Back focal length*

8.8 mm

Flange back distance*

19.47 mm

*: value applicable with 1 mm Ge window (not included)

Environmental Properties

Sealing

IP55

Solar radiation

MIL-STD-810G Method 505.5

Vibration

MIL-STD-810E Method 514.4 Proc I Cat 8

Operating temperature

-40 °C to +80 °C

Storage temperature

-57 °C to +105 °C

Optical Properties

Product number

11107_110

Focal length

13 mm

F-number/Aperture

f/1.0

Transmission

> 87%

Focus range

0.4 m to infinity with refocus of 0.4 mm

Waveband

8 - 12 µm

Mechanical Properties

Mechanical shock

MIL-E-5400T

Weight

23 g

Interface thread

M25x0.5

Back focal length*

8.8 mm

Flange back distance*

19.47 mm

*: value applicable with 1 mm Ge window (not included)

Environmental Properties

Sealing

IP67

Solar radiation

MIL-STD-810G Method 505.5

Vibration

MIL-STD-810E Method 514.4 Proc I Cat 8

Operating temperature

-40 °C to +80 °C

Storage temperature

-57 °C to +105 °C

Fields of View

Detector

HFoV

VFoV

DFoV

384x288 17 µm

28.7°

21.7°

35.3°

320x240 17 µm

24.1°

18.1°

29.9°

160x120 17 µm

12.1°

9.1°

15.2°
