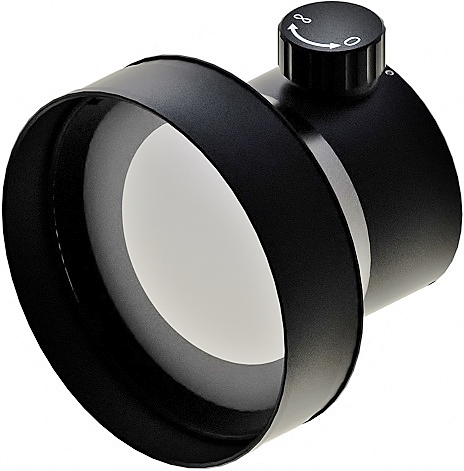

100 mm f/1.0 MFX Manual focus

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog lenses provide a costeffective solution for high-resolution thermal imaging and sensing applications.

This manual focus lens offers superior performance from 8 m out to infinity. Its lightweight and intuitive design make it a prime choice for your application. This lens is compatible with 17 μm VGA detectors and smaller

HDAR  (633.1K )

Optical Properties

Product number

16101-100

Focal length

100 mm

F-number/Aperture

f/1.0

Transmission

>87 %

Focus range

8 m to infinity over 270° focus movement

Waveband

8 - 12 µm

Mechanical Properties

Weight

678 g

Interface thread

M34x0.5

Back focal length*

10 mm

Flange back distance*

18,3

*:

Environmental Properties

Operating temperature

-40°C to +80°C

Storage temperature

-57°C to +105°C

Fields of View

Detector

HFoV

VFoV

DFoV

640x480 17 µm

6.2°°

4.7°°

7.7°°

640x480 12 µm

4.4°°

3.3°°

5.5°°

384x288 17 µm

3.7°°

2.8°°

4.7°°

320x240 17 µm

3.1°°

2.3°°

3.9°°

384x288 12 µm

2.6°°

2.0°°

3.3°°

206x156 12 µm

2.2°°

1.6°°

2.7°°
